About PALLET MESH CAGE
Pallet Wire Mesh Cage Containers for Bulk Material Handling:
Supo Castor supply foldable wire mesh cage for material handling and storage in supermarket, shops and industries
the ideal choice for better bulk material handling.
Specifications: Pallet cages and containers can be described by its loading capacity, bulk measurement, cage dimensions (length, width and height), cage or containers legs height, wire diameter and mesh size.
(No Wheel & No Top Cover)
Size (a): 890mm (Overall Height)
Size (b): 100mm (Floor to Deck)
Size (c): 1200mm (Overall Length)
Size (d): 1000mm (Overall Width)
Thickness: 5.8mm
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs
Product Code: 132-FWMC-091012

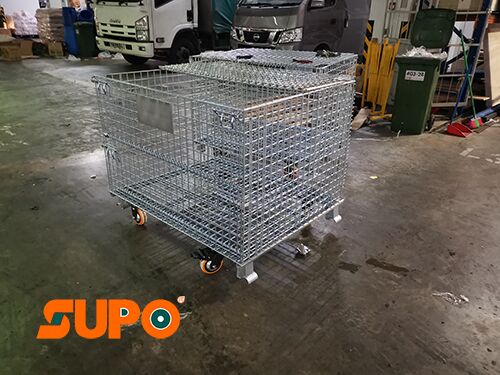

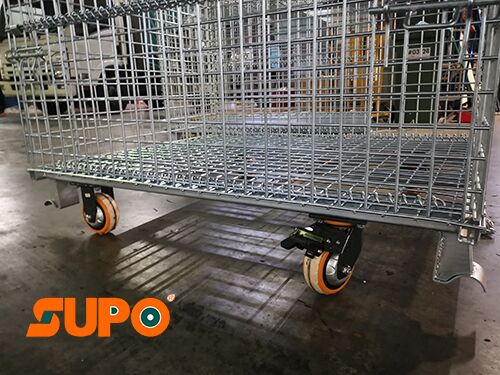

Foldable Wire Mesh Cage (With Wheel only)
Size (a): 950mm (Overall Height)
Size (b): 150mm (Floor to Deck)
Size (c): 1200mm (Overall Length)
Size (d): 1000mm (Overall Width)
Thickness: 5.8mm
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs

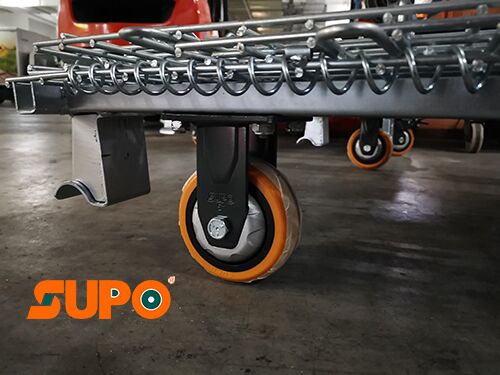

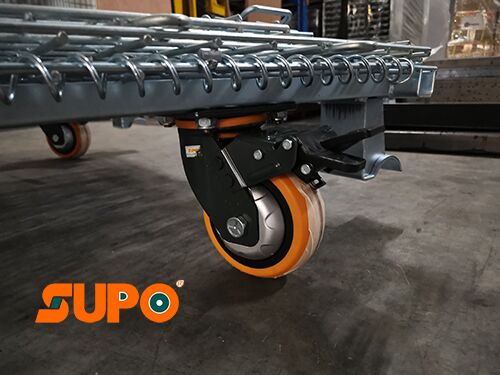

Wheel Load: Selection of 400/550/800/1100 kgs UDL
Product Code: 132-FWMC-091012W#
Foldable Wire Mesh Cage (With Wheel & Top Cover)
Size (a): 950mm (Overall Height)
Size (b): 150mm (Floor to Deck)
Size (c): 1200mm (Overall Length)
Size (d): 1000mm (Overall Width)
Thickness: 5.8mm
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs
Wheel Load: Selection of 400/550/800/1100 kgs UDL
Product Code: 132-FWMC-091012WC#
Foldable Wire Mesh Cage (With Top cover only)
Size (a): 890mm (Overall Height)
Size (b): 100mm (Floor to Deck)
Size (c): 1200mm (Overall Length)
Size (d): 1000mm (Overall Width)
Thickness: 5.8mm
Materials: Steel Bar
Treatment: Post Galvanized
Max Stack: 4 stack of 1000kgs (Including bottom)
Capacity: 1500 kgs
Product Code: 132-FWMC-091012C
